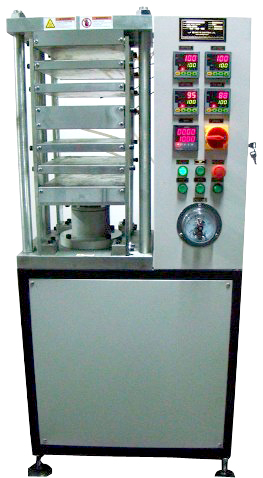

Designed to laminate A4 PVC sheets, the Atsu Laminator is endowed with features such as hydraulic pressing, electric heating water cooling, single tower as well as normal electric control. The machine is engineered with automatic temperature as well as pressure control for easy operation. The machine comprises of high quality hydraulic parts and has a very compact design.
| Material applicable | PVC or Other Plastics |
| Plate layout | 2x5 |
| Plate Number | 4 each for both cool and heat lamination |
| Plate Size | 250x350mm |
| Daylight | 40mm |
| Maximum Material layers | 15 layers |
| Work pressure | 2 ∼ 15mPa adjustable |
| Pressure Precision | +1.0Mpa |
| Heat temperature | < 200 |
| Temp.precision | +2 C < 200 |
| Cylinder travel | 260mm |
| Cylinder number & diameter | 1x100 |
| Oil Tank Volume | 35L |
| Power supply | AC220V 50/60Hz 3 wires single phase |
| Power | 6.3kW |
| Productivity | 1000 cards/hour |
| Dimension | L750xW520xH1520mm |
| Weight | Approx 320 kg |
