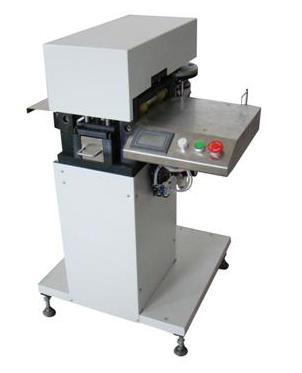

The Atsu A4 punching machine is a compact solution specially designed for small card factories. It is equipped with PLC and GT01 mini industrial touch screen designed by Panasonic, Japan. The machine is engineered with KEYENCE optical fiber sensor to locate the punching mark with accuracy and precision. The Atsu A4 punching machine is made with imported Japanese mold steel and the punching head is driven by a powerful motor. It is also notable for its easy operation and handling.
| Material applicable | 0.3 ∼ 1.0mm PVC or other plastic material |
| Punch Layout | 2 X 5 |
| Punch head number | 2 |
| Air consumption | 2 L/min |
| Power supply | AC220V 50/60V |
| Power | 850W |
| Productivity | 3600 cards/hour |
| Dimension | L750xW650xH1100mm |
| Weight | Approx. 130 kg |
