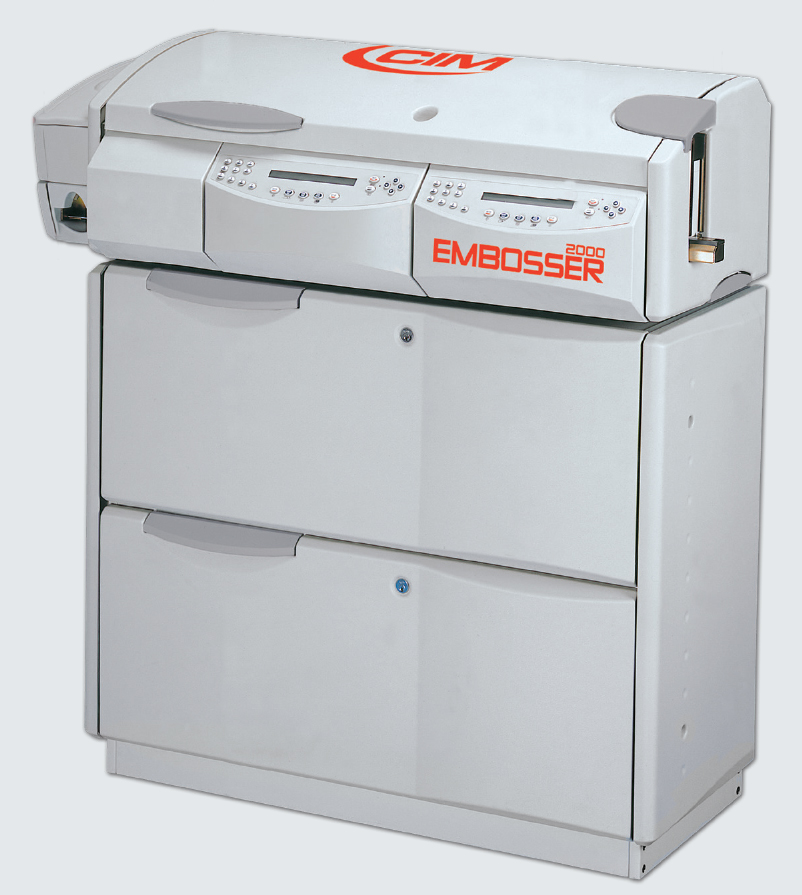

A step forward in complete and fast plastic card personalisation
800 CPH. MSP system allowing 4 cards to be processed simultaneously
Double embossing drum with a total of 210 character capacity
The compact design ensures easy installation in any working environment
Available with special characters to meet the requirements of VISA and MasterCard for personalisation of international credit cards

Available options	Chip contact initializing. Floor stand unit for Pro-Series.
Built-in tipper unit	Off-line tipping possibility (11 lines) . Ribbon saving feature.
Communication interface	Serial RS232 port.
Dimensions and weight	1200 x 480 x 350 mm x 80 kg. (47,25"x19"x13,75"x178 lbs)
Drum capacity	Drum capacity: 2x105 characters, embossing and/or infill.
Electrical requirements	117 V / 60 Hz -220 V / 50 Hz.
Input hopper capacity	200 cards. Pre-embossed card automatic feed feature.
Magnetic stripe encoding	3 Tracks ISO 7811, LoCo-MeCo/HiCo.
Output hopper capacity	200 embossed cards. Reject hopper.
Performance	Approx. 800 CPH. Multi Parallel Processing System: 4 cards simultaneously processed.
Software	Windows based application software. Firmware: seIf diagnostic, selectable, automatic repeat card, pre-embossed card reading with full post processing of the same card, resettable and non resettable counters. System status and diagnostic messages reported on PC. Optional LinkWare application for in-line operation with other Pro-Series modules.
