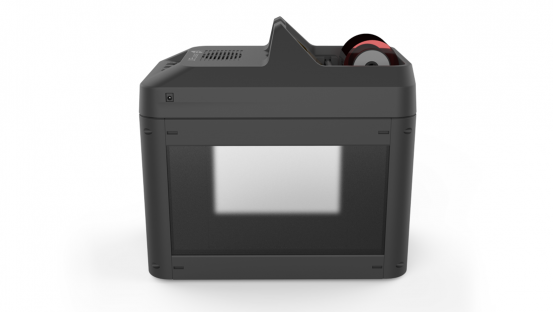

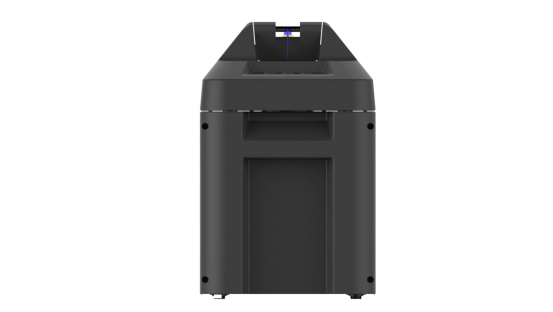

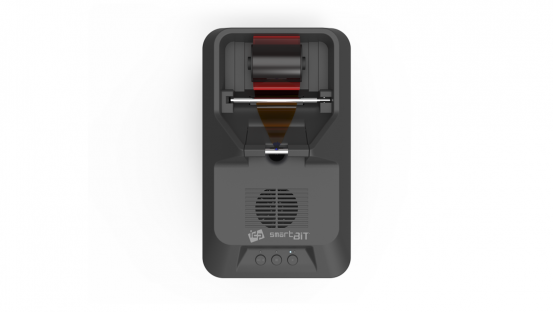

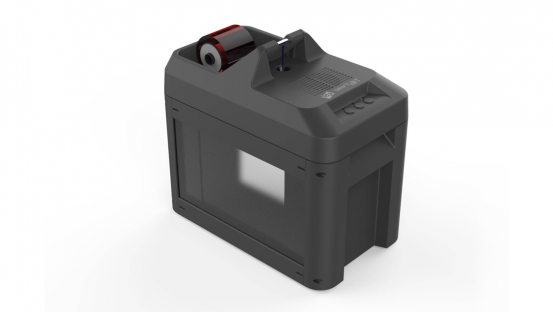

Ribbon Shredder

  • Security Assurance
  • Twisted Micro-Cut Technology
  • Complete Shredding
  • Twisted Micro-Cut Technology
  • Flexible Card Printer Ribbon Compatibility
  • High Volume Capacity
  • Compact Easy-to-use Design
  • Specification
  • Shredding
    Shredable Ribbon Type Dye-Sublimation Ribbon, Resin & Wax Ribbon
    Shredable Ribbon Width 60mm to 90mm (Installable Ribbon Core Width : Max. 120mm)
    Installable Ribbon Diameter Max Ø80
    Cutting Type Twisted Micro Cut
    Shredded Particle Size Approx. 2.5mm
    Speed
    Shredding Speed Max. 12 meters/minute
    Capacity
    Shredder Bin Capacity 6 Rolls (YMCKO, 250 cards/roll)
    System
    Control Speed (Normal or Fast mode), Start & Stop, Reverse
    Auto Stop Finished Shredding, Ribbon Jam
    Interface 4 LEDs, 3 Buttons
    Power Consumption DC 24V, 2A
    Temp. / Humidity 15 ∼ 35 C / 35 ∼ 70%
    Warranty Approx. 100 km
    Dimensions
    Millimeter 232(W) x 364.6(H) x 386(L) mm
    Inch 9.1 x 14.4 x 15.2 inch
    Weight
    kg Approx. 4.8 kg
    lbs Approx. 10.6 lbs
  • Consumables
  • SMART-BIT Accessories
    Dust Bag Packing: 5ea/1 Pack Genuine Dust Bag for SMART-BIT

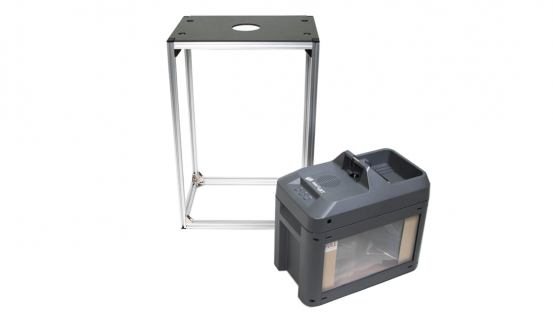

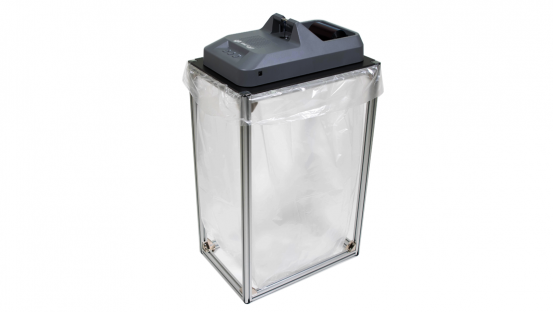

    Large Waste Bin Capacity: 70 Liter Genuine large waste bin for SMART-BIT
    Large Dust Bag Packing: 20ea/1 Pack Genuine Large Dust Bag for Large waste bin
